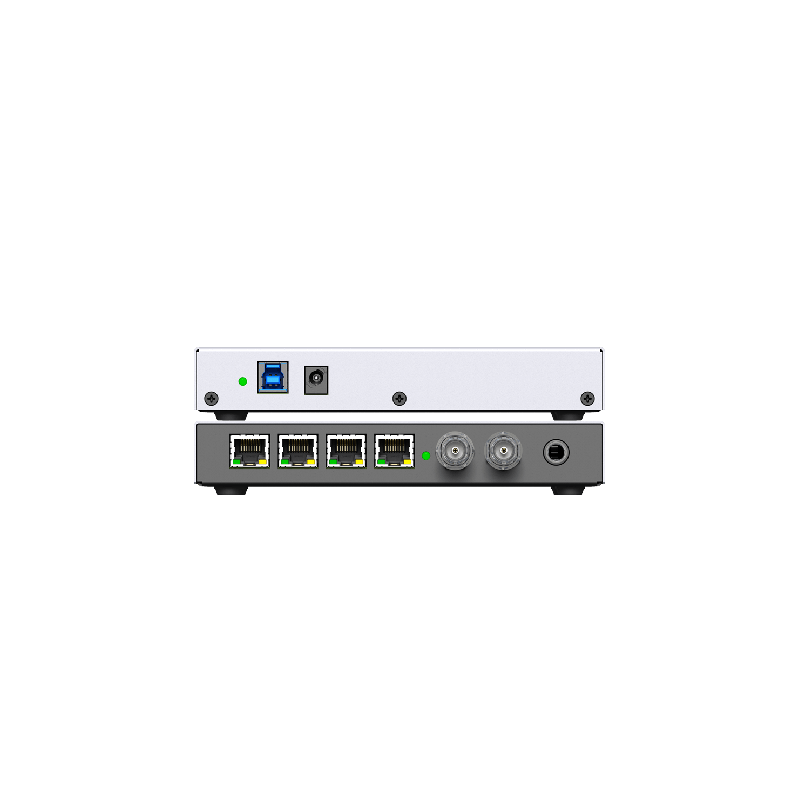

RME Digiface Dante 24 Bit / 192 kHz, 256-channel Hi-Performance USB 3.0 Audio Interface, Dante I/O, MADI Coaxial I/O

Digiface Dante   Gigabit Ethernet Port RJ45 100 Mbit/s, 1 Gbit/s Standard port LEDs: yellow connected, green data transmission Supports straight and crossover cables (Auto MDI-X) Network-based remote control of the unit (TotalMix Remote) MADI Input Coaxial via BNC, 75 Ohm, according to AES10-1991 High-sensitivity input stage (< 0.2 Vpp) Accepts 56 channel and 64 channel mode, plus 96k Frame Standard: up to 64 channels 24 bit 48 kHz S/MUX: up to 32 channels 24 bit 96 kHz S/MUX4: up to 16 channels 24 bit 192 kHz Lock range: 25 kHz – 54 kHz MADI Output Coaxial via BNC, 75 Ohm, according to AES10-1991 Output voltage 400 mVpp Cable length: up to 50 m Generates 56 channel and 64 channel mode, plus 96k Frame Standard: up to 64 channels 24 bit 48 kHz S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz S/MUX4: up to 16 channels 24 bit 192 kHz Word Clock In BNC, not terminated (10 kOhm) Switchable internal termination 75 Ohm Automatic Double/Quad Speed detection and conversion to Single Speed Word Clock Out BNC Max level: 5 Vss Level with termination 75 Ohm: 4.0 Vss Internal impedance: 10 Ohm Output Analog Phones 129/130 Dynamic range (DR): 110 dB RMS unweighted, 113 dBA Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz THD@-1dBFS:-96dB,0.0016% THD+N @ -1 dBFS: -95 dB, 0.0017 % Channel separation: > 100 dB Output: 6.3 mm TRS jack, unbalanced Output impedance: 2 Ohm Output level at 0 dBFS, 1 kOhm load: +9.5 dBu Max power @ 0.1% THD: 50 mW Digital Clocks: Internal, Dante, Word, MADI Supported sample rates: 44.1 kHz up to 192 kHz
